HP OMEN Pro 15 Notebook – Mobile workshop - Disassembling procedure – How to remove the case – How to remove the battery – Touch pad removal – Laptop repair and service
Category: Laptop repair and Service
Contents of this article
- How to remove the case
- How to remove The battery
- How to remove the touch pad
HP OMEN Pro 15 Notebook
WHATS INSIDE ? ( Hardware )
PROCESSOR
Intel Core i7-4870HQ with Intel Iris Pro Graphics 5200
(2.5 GHz, up to 3.7 GHz with Intel Turbo Boost Technology, 6 MB cache, 4 cores)
Intel Core i7-4720HQ with Intel HD Graphics 4600
(2.6 GHz, up to 3.6 GHz with Intel Turbo Boost Technology, 6 MB cache, 4 cores)
Intel Core i7-4870HQ with Intel Iris Pro Graphics 5200
(2.5 GHz, up to 3.7 GHz with Intel Turbo Boost Technology, 6 MB cache, 4 cores)
Intel Core i7-4720HQ with Intel HD Graphics 4600
(2.6 GHz, up to 3.6 GHz with Intel Turbo Boost Technology, 6 MB cache, 4 cores)
CHIPSET
Intel HM87 Express
Intel HM87 Express
GRAPHICS
Integrated
Intel HD 4600 Graphics
Intel Iris Pro Graphics 5200
Discrete
NVIDIA Quadro K1100M (2 GB dedicated GDDR5)
Intel HD 4600 Graphics
Intel Iris Pro Graphics 5200
Discrete
NVIDIA Quadro K1100M (2 GB dedicated GDDR5)
STORAGE AND DRIVES
Primary Storage Bay
256 or 512 Gb HP Z Turbo Drive (PCIe SSD)
Primary Storage Bay
256 or 512 Gb HP Z Turbo Drive (PCIe SSD)
DISPLAY
15.6" (39.6 cm) diagonal full HD WLED backlit touch screen display (1920 x 1080)
15.6" (39.6 cm) diagonal full HD WLED backlit touch screen display (1920 x 1080)
DISASSEMBLING PROCEDURE
How to remove Bottom cover
Before replacing the bottom cover, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
Remove the bottom cover:
1. Close and position the computer upside down with the front toward you.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
Remove the bottom cover:
1. Close and position the computer upside down with the front toward you.
2. Pry up to remove the rubber strips from the bottom of the computer.
3. Remove the 11 Phillips PM2.0×5.0 screws that secure the bottom cover to the computer.

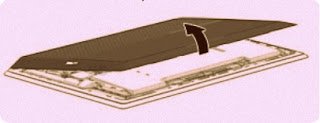

4. Lift the bottom cover off the computer.
How to remove Disconnecting the battery
Before disconnecting the battery, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover
Disconnect the battery:
Pull to disconnect the battery cable from the system board connector.
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover
Disconnect the battery:
Pull to disconnect the battery cable from the system board connector.
How to remove WLAN module
Before replacing the WLAN module, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover
5. Disconnect the battery
Remove the WLAN module:
1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the WLAN module to the system board.
3. Remove the WLAN module (3) by pulling the module away from the slot.
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover
5. Disconnect the battery
Remove the WLAN module:
1. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the WLAN module to the system board.
3. Remove the WLAN module (3) by pulling the module away from the slot.
How to remove Battery
Before replacing the battery, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover
Remove the battery:
1. Disconnect the battery cable from the system board (1) .
2. Remove the four Phillips PM2.0×4.0 screws (2) that secure the battery to the computer.
1. Disconnect the battery cable from the system board (1) .
2. Remove the four Phillips PM2.0×4.0 screws (2) that secure the battery to the computer.
3. Lift the battery (3) from the computer.
How to remove TouchPad
Before replacing the TouchPad, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover
5. Remove the battery
Remove the TouchPad:
1. Disconnect the TouchPad cable from the system board (1).
2. Remove the Mylar from atop the middle screw of the touchpad (2).
3. Remove the five Phillips PM1.5×2.0 broad head screws (3) that secure the TouchPad to the computer.
4. Remove the TouchPad (4).
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover
5. Remove the battery
Remove the TouchPad:
1. Disconnect the TouchPad cable from the system board (1).
2. Remove the Mylar from atop the middle screw of the touchpad (2).
3. Remove the five Phillips PM1.5×2.0 broad head screws (3) that secure the TouchPad to the computer.
4. Remove the TouchPad (4).
