How to disassemble - Lenovo Yoga 2 11 – How to test the charger - How to remove the cover – How to remove the battery – How to remove the system board – Laptop repair and service
Category: Laptop Repair and Service
Contents of this article
- How to remove the system board
- Factory reset procedure
- AC adapter testing
Lenovo Yoga 2 11
To verify a symptom, follow the steps below:
1. Turn off the computer.
2. Connect the AC adapter.
3. Make sure that power is supplied when you turn on the computer.
4. Turn off the computer.
5. Disconnect the AC adapter.
6. Make sure that the battery pack supplies power when you turn on the computer.
If you suspect a power problem, see the appropriate power supply checkout:
# “Checking the AC adapter”
# “Checking operational charging”
Checking the AC adapter
You are here because the computer fails only when the AC adapter is used.
#If the power-on indicator does not turn on, check the power cord of the AC adapter for correct continuity and installation.
To check the AC adapter, follow the steps below:
1. Unplug the AC adapter cable from the computer.
2. Measure the output voltage at the plug of the AC adapter cable. See the following figure:
1. Turn off the computer.
2. Connect the AC adapter.
3. Make sure that power is supplied when you turn on the computer.
4. Turn off the computer.
5. Disconnect the AC adapter.
6. Make sure that the battery pack supplies power when you turn on the computer.
If you suspect a power problem, see the appropriate power supply checkout:
# “Checking the AC adapter”
# “Checking operational charging”
Checking the AC adapter
You are here because the computer fails only when the AC adapter is used.
#If the power-on indicator does not turn on, check the power cord of the AC adapter for correct continuity and installation.
To check the AC adapter, follow the steps below:
1. Unplug the AC adapter cable from the computer.
2. Measure the output voltage at the plug of the AC adapter cable. See the following figure:
Note: Output voltage for the AC adapter pin No. 2 may differ from the one you are servicing.
3. If the voltage is not correct, replace the AC adapter.
4. If the voltage is acceptable, do the following:
Replace the system board.
Note: Noise from the AC adapter does not always indicate a defect.
Checking operational charging
To check whether the battery charges properly during operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.
3. If the voltage is not correct, replace the AC adapter.
4. If the voltage is acceptable, do the following:
Replace the system board.
Note: Noise from the AC adapter does not always indicate a defect.
Checking operational charging
To check whether the battery charges properly during operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.
Perform operational charging. If the battery status indicator or icon is not lit, remove the battery pack and let it return to room temperature. Reinstall the battery pack. If the charge indicator or icon is still off, replace the battery pack. If the charge indicator is still not lit, replace the system board.
Restore of factory default
The Lenovo Yoga 2 11 computer comes with pre-installed OneKey Recovery System.In order to save application files and the initial backed up files of the system, the hard disk in a Lenovo computer includes a hidden partition when it is shipped. If you need to restore the system to the point of your first boot up, just enter Lenovo OneKey Recovery System and run System Recovery.
The Lenovo Yoga 2 11 computer comes with pre-installed OneKey Recovery System.In order to save application files and the initial backed up files of the system, the hard disk in a Lenovo computer includes a hidden partition when it is shipped. If you need to restore the system to the point of your first boot up, just enter Lenovo OneKey Recovery System and run System Recovery.
DISASSEMBLING PROCEDURE
How to remove Base cover
Remove the screws 1. Then remove the base cover 2.
How to remove Battery pack

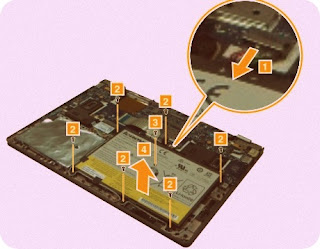

Unplug the battery connector 1 and remove the screws 2 and screw 3. Then remove the battery pack in the direction shown by arrow 4.
How to remove Hard disk drive
Detach connector in the direction shown by arrow 1. Remove the frame fixing
screws 2, then remove the hard disk drive in the direction shown by arrow 3.
screws 2, then remove the hard disk drive in the direction shown by arrow 3.
How to remove System board
Detach keyboard connector in the directions shown by arrows 1 and 2, power board connector in the directions shown by arrows 3 and 4, touch pad connector in the directions shown by arrows 5 and 6, unplug speaker connectors in the direction shown by arrow 7, DC-IN cable connector in the direction shown by arrow 5, disconnect camera connector in the direction shown by arrow 8,LCD connector in the direction shown by arrow I. Remove screws 11.
Remove the system board in the direction shown by arrow 12.
